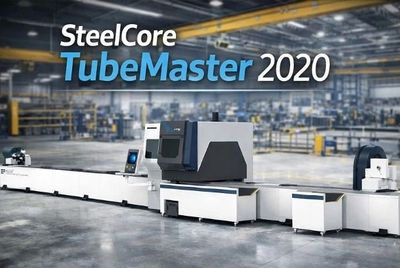

SteelCore TubeMaster 2020
Introduction
This versatile laser tube cutting machine is designed for processing extra-long pipes (6,000–12,000 mm) and large diameters up to 360 mm. Equipped with a three-chuck system, it enables cutting operations with near-zero material waste when proper cutting strategies are applied. The machine significantly improves material utilization and helps reduce raw material procurement costs.
2-year warranty | Engineer on-site within 3 days in case of malfunction
Key Specification
Laser power: 1.5 – 6 kW
Maximum tube length: 6,000 – 12,000 mm
Maximum tube diameter: 20 – 360 mm
Maximum tube weight: 250 – 1,000 kg
Performance Specification
The machine is suitable for high-precision cutting of round, square, rectangular, and oval tubes, as well as I-beams, channels, angle steel, C-profiles and H-beams.
Designed for extra-long tubes
Tube length: 6,000–12,000 mm
Round tube diameter: Ø20–360 mm
Square tube size: 20×20–360×360 mm
Rectangular tubes: based on side dimensions
Approximately 70% faster than comparable models.
High level of automation
Minimal manual intervention
Reduced risk of operational errors
Mechanical Advantages
The machine features a proven, high-rigidity structural design with an integrated drive system and intelligent support to ensure stable, accurate tube cutting. Its heavy-duty bed and precision transmission provide positioning accuracy of ± 0.03 mm and long-term durability under demanding conditions.
The advanced CNC control system offers automatic nesting, 7-axis dynamic cutting, and real-time deviation compensation, maximizing material utilization, reducing waste, and ensuring high cutting precision with easy and intuitive operation.
