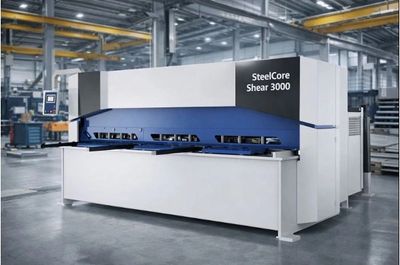

SteelCore Shear 3000
System
ELGO P40T touchscreen NC control unit
Rexroth / Hoerbiger hydraulic system
Manual blade gap adjustment system
1,000 mm NC-controlled, programmable, motorized backgauge
Programmable backgauge retraction function
Technical and Structural Features
250 mm throat depth
Fold-up backgauge function for sheets longer than 1,000 mm
Stroke rate adjustment via the control panel to increase short-cutting efficiency
Upper blade with 2 cutting edges / Lower blade with 4 cutting edges
Custom-designed components to reduce maintenance requirements
1,000 mm front support arms with measuring scale, T-slot and stops
Safety and Operating Features
Transfer table with roller balls
Front and side safety guards
Illuminated cutting line
Front finger guard, 1,000 mm, with fold-up function
Foot pedal
Emergency stop buttons
Specially designed covers with movable control lever
Technical Parameters
Cutting capacity (700 N/mm2): 4
Cutting lenght (mm): 2100
Cutting angle: 1,5
Hold down cylinders: 10
Cutting speed/fast mode (hpm): 21/30
Distance between columns (mm): 2330
Table height (mm): 850
Table width (mm): 500
Throat depth (mm): 250
