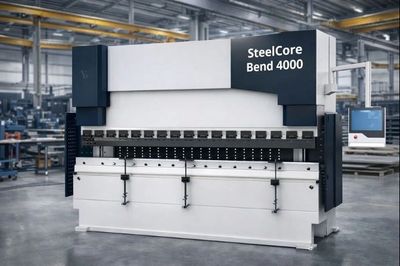

SteelCore Bend 4000

---

Maximum bending force: 1,000 kN

Bending length (A): 3,200 mm

Distance between columns (B): 2,600 mm

Throat depth (E): 400 mm

Open height (D): 480 mm

Ram speed: Approach speed: 180 mm/s
                    Bending speed: 0–10 mm/s
                    Return speed: 160 mm/s

Main motor power: 7.5 kW

Overall dimensions (L × W × H): 3,700 × 1,930 × 2,630 mm

Machine weight: 6,600 kg

Bending capacity (based on 3,000 mm bending length)

                               ≤ 3 mm carbon steel
                              ≤ 2 mm stainless steel
                              ≤ 4.5 mm aluminum
